SnylloAir Skid System With Cylinder Station As Emergency Backup
- This scheme comes with Medical Oxygen Generator as the main supply.
- The existing Cylinder station acts as emergency back-up.
- It is a compact system

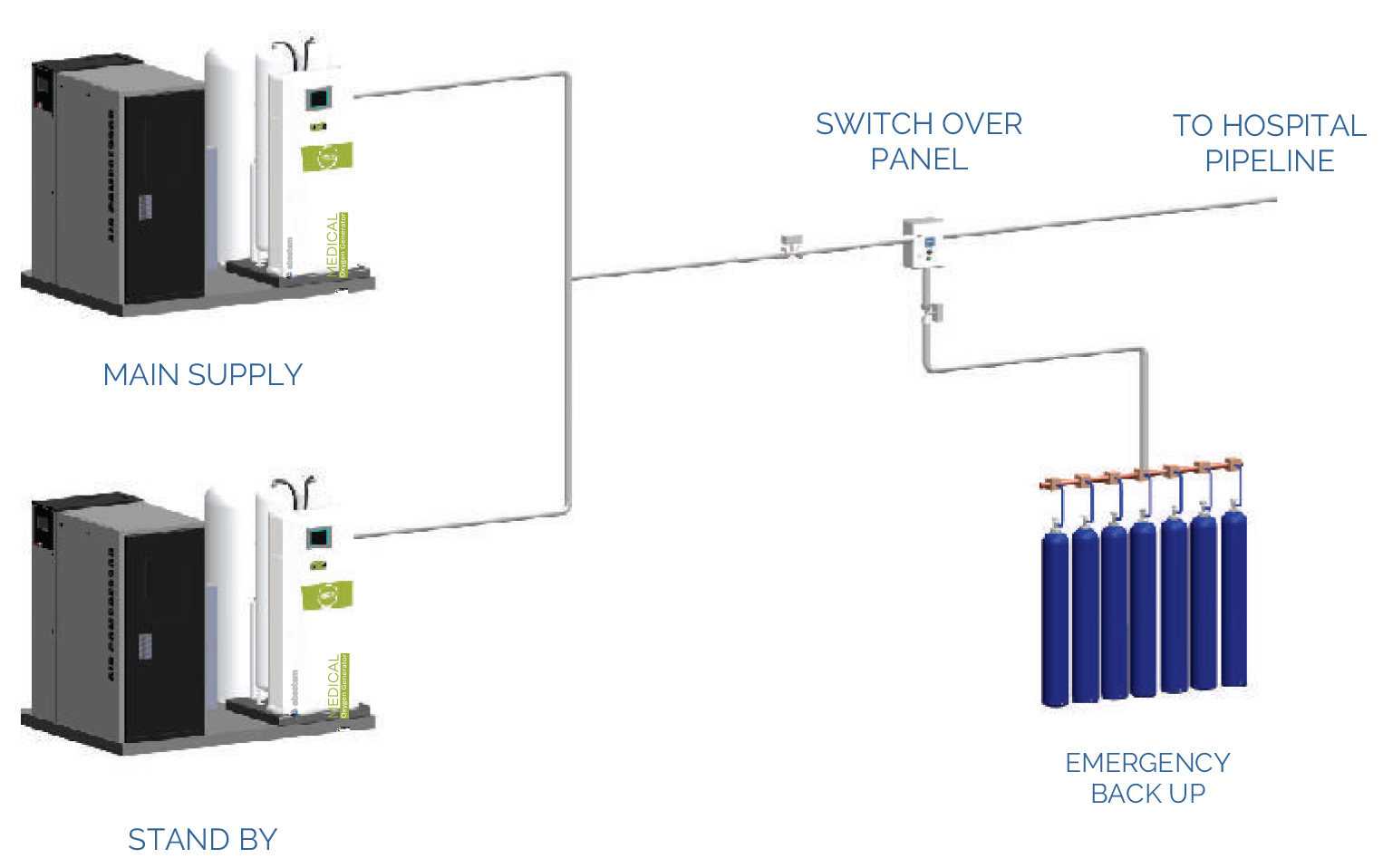

Two SnylloAir Skid Systems With Cylinder Station As Backup
Onsite Medical Oxygen Generator are the complete solution for all the Oxygen related issues in the hospitals. The generator is acceptable worldwide.
- This scheme comes with Medical Oxygen generator as the main supply.
- The additional medical oxygen generator acts as a standby machine.
- The existing Cylinder station acts as an emergency back-up.
- This scheme requires higher space compared to above installation scheme.
Two SnylloAir Skid Systems With Oxygen Booster & Cylinder/Storage Tank*
- 1 st set-up: The medical oxygen generator acts as the main supply. The additional medical oxygen generator acts as a standby.
- 2 nd set-up: This standby unit also fills the cylinder station at 150 bar pressure via oxygen booster
- 3 rd set-up: The cylinder system acts as an emergency back up
- This complete installation scheme requires very large space
