Medical Oxygen High Pressure Systems
Onsite Medical Oxygen generators provide medical oxygen to hospitals with direct supply to the hospital line. To save electricity, concerning longevity of machine and most importantly for safety/back-up considerations, hospitals require bulk storage of medical oxygen.
The Questions is how to do it and how easy it is. We will tell you today the truth with clear explanations about the same.
Features And Benefits
Onsite Medical Oxygen Generator are the complete solution for all the Oxygen related issues in the hospitals. The generator is acceptable worldwide.
This is an easy back-up option
Can support a hospital consuming 4- 800 cylinders per day
Safety assured instrumentation used with international designing methodology
No more vendor requirement for any medical oxygen needs say small or large
Can be easily customized per requirement
No more manual refilling required
Complete system providing total solution to medical oxygen needs

How It Happens

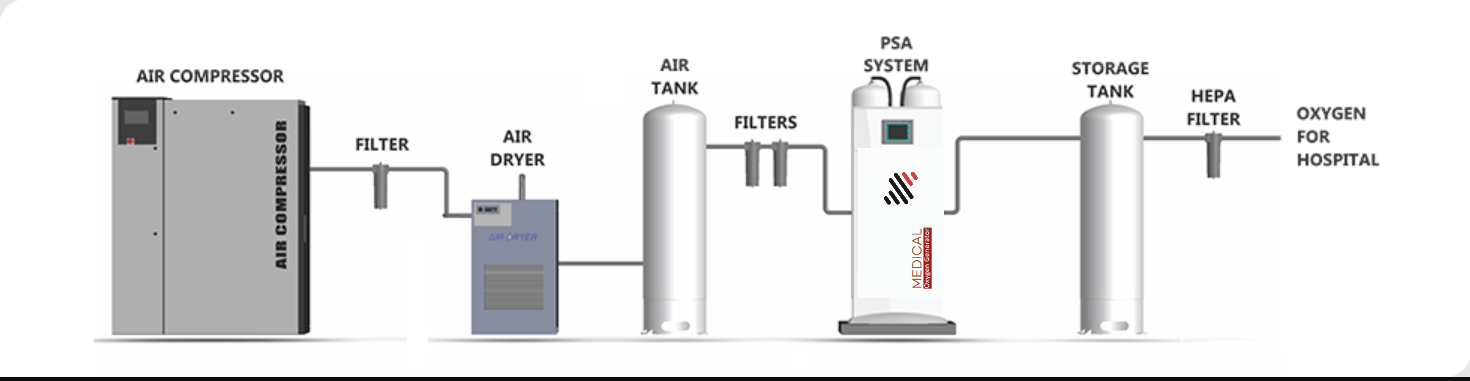

Our medical oxygen generator produces medical grade oxygen at a pressure of 5-6 bar g and has capability to store oxygen for around 20 minutes or more depending upon hospital set-up and space availability.
1 One is by getting a storage tank which stores medical oxygen at a pressure of 30 bar g.
2 Second is having a cylinder manifold system which stores medical oxygen at a pressure of 150 bar g.
For premium hospitals, both different set-ups can be installed at once for superior safety precautions.
Product Schemes

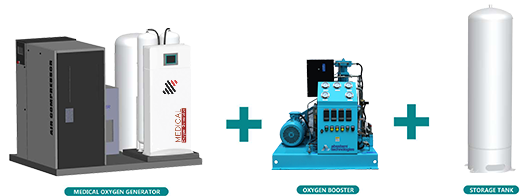

Medical Oxygen Generator with Storage Tank @30 barg pressure
This complete system uses Medical Oxygen generator to produce oxygen at a pressure of 5 barg
Medical Oxygen produced is then sent to Oxygen booster to pressurize it to 30 bar g
The final gas pressurized by the oxygen booster is then allowed to be stored in the storage tank provided This gas stored is then connected to the hospital pipeline system and used at patient beds (ICU’s, OT’s, Wards etc.)

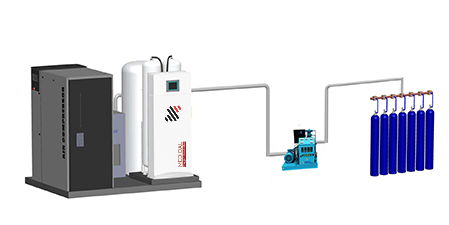

Medical Oxygen Generator with Cylinder Mainfold Station @150 bar pressure
This complete system uses Medical Oxygen generator to produce oxygen at a pressure of 5 bar g
Medical Oxygen produced is then sent to Oxygen booster to pressurize it to 150 bar g
The final gas pressurized by the oxygen booster is then allowed to be stored in the cylinder manifold station provided
This gas stored is then connected to the hospital pipeline system and used at patient beds (ICU’s, OT’s, Wards etc.)
Note: Customized machine comes with specific delivery time. Our professional engineer visits your set-up and accordingly we provide you detailed architectural plan. We suggest you the best model and scheme per the location and requirement.

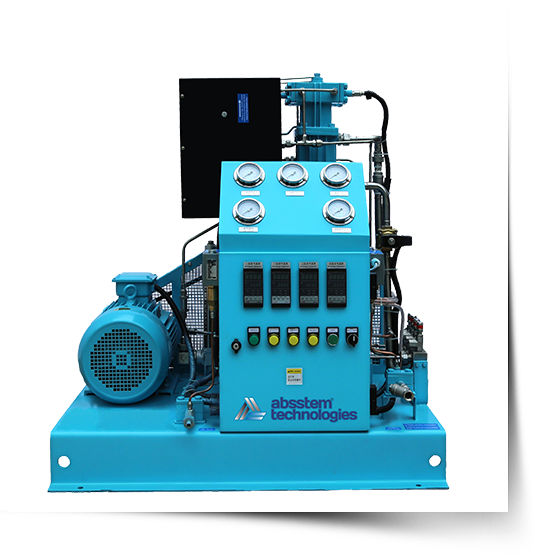

High Pressure Oxygen Compressor
approved
Totally 100% oil free, no need of any oil
Suitable for medical grade oxygen gas
No contamination or addition of pollutants.
No effect on Inlet gas purity
Reliable and top quality, comparable with any world International brand
Excellent performance, low maintenance cost and easy to be operational, only need to change piston ring
4000 hours piston ring working life,1500-2000 hours working life for final stage ring
Reliable motor having special designing for superior life

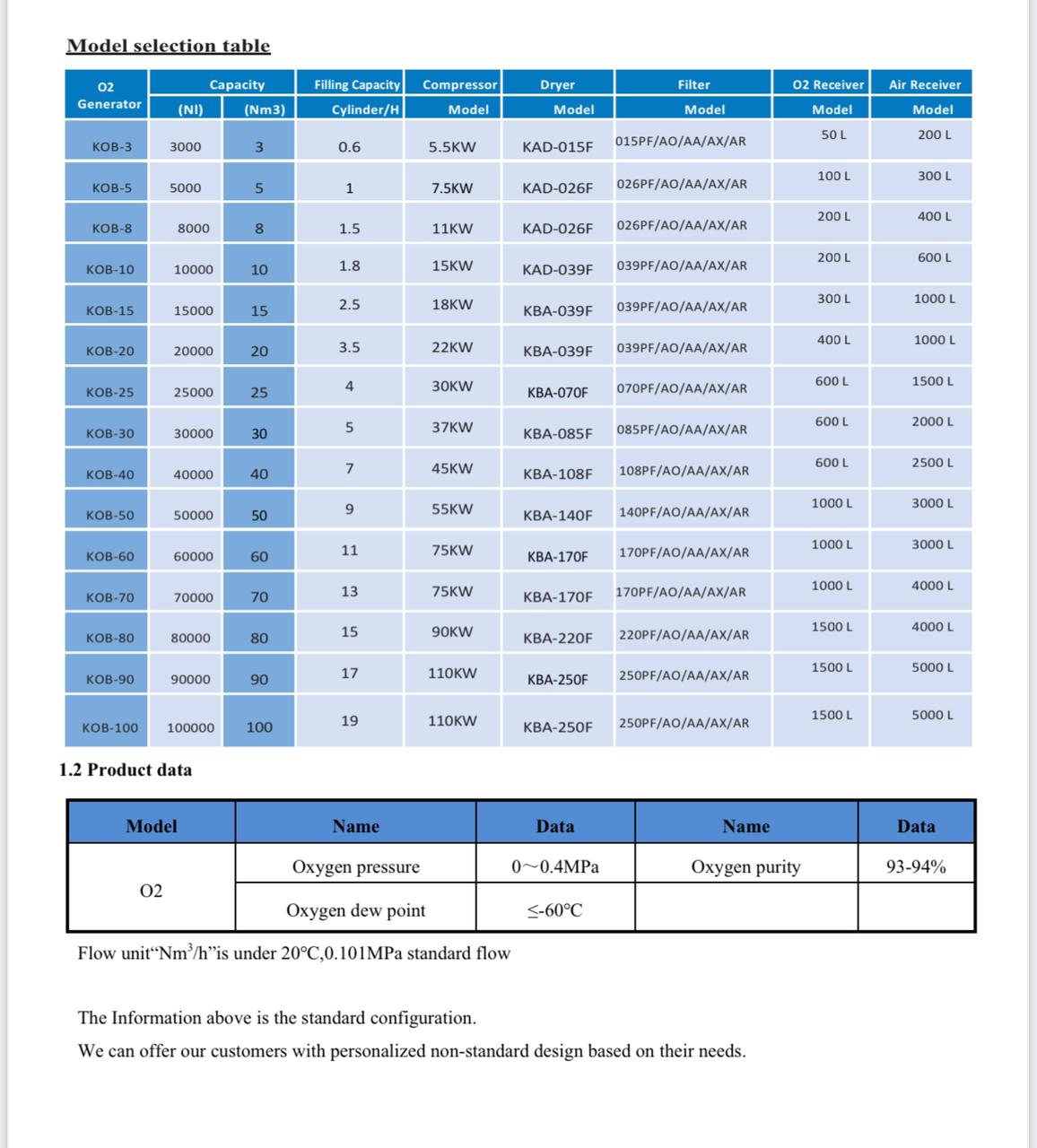

Oxygen Compressor Models
Our medical oxygen generator produces medical grade oxygen at a pressure of 5-6 barg and has capability to store oxygen for around 20 minutes or more depending upon hospital set-up and space availability.
For more storage we provide two options
One is by getting a storage tank which stores medical oxygen at a pressure of 30 bar g
Having a cylinder manifold system which stores medical oxygen at a pressure of 150 bar g.
For premium hospitals, both different set-ups can be installed at once for superior safety precautions.

How Many Days Storage Is Necessary ?
Both storage tank system and cylinder manifold system have the capability to store your medical oxygen starting from 2 days and can go upto 4 or 6 days depending upon your desire and space availability. A typical hospital should acquire at least 2-3 days of storage. Storage is a necessity and is a mandate option because a hospital cannot run out of oxygen supply
To know the exact storage you require for your hospital write to us
Contact Us
What We Provide
Snyllo Innovation Pvt. Ltd. LLP is a dedicated manufacturer of Medical Oxygen generators. We also provide Oxygen booster for high pressure filling into storage tank or cylinder manifold system. We have the capability to customize all sizes of storage tanks. Also we can provide cylinder manifold systems of any count. The most important factor using storage tank or cylinder manifold system is to have storage back-up starting from 2 days and more. All vessels are customized in our factory works and are quality tested.
For more details on storage tank system or cylinder manifold system please Contact
