SnylloAir – Medical Oxygen Generator
Onsite Medical Oxygen Generator are the complete solution for all the Oxygen related
issues in the hospitals. The generator is acceptable worldwide.
SnylloAir Features
Benefits Of SnyalloAir
READY TO USE
Shipped ready for installation.
Designed for reliability
5 minutes to run and never need to stop it!
Easy installation (Roof, Basement, beside the hospital building)
COST SAVINGS
Maintenance costs are very small
R.O.I. ranging from few months up to 24 months maximum
Low operating expenses compared to cylinders and liquid oxygen
DESIGN
Designed for International approach
Touch screen monitor
Oxygen purity analyzer
Safety interlocks
Space saving
CONVENIENT AND SAFE
Easy to operate, user friendly unit
Eliminated all kinds of hazards that are associated with traditional gas supply methods i.e. cylinder or liquid oxygen
LONGEVITY
At least 10 years and keeps running
SnylloAir Range for Your Hospital
With Snyllo Innovation Pvt. Ltd., hospital never needs to care about space issues, as we design our machine per your hospital environmental scenario and current space availability.
| Oxygen Flow Capacity | |
| NI | 60000 |
| NM3 | 60 |
| Filling Capacity Cylinder/H | 11 |
| Compressor | 75KW |
| Dryer | KAD-170F |
| Filter | 170PF/AO/AA/AX/AR |
| O2 Receiver | 1000L |
| Air Receiver | 3000L |
| Oxygen Flow Capacity | |
| NI | 5000 |
| NM3 | 5 |
| Filling Capacity Cylinder/H | 1 |
| Compressor | 7.5KW |
| Dryer | KAD-026F |
| Filter | 026PF/AO/AA/AX/AR |
| O2 Receiver | 100L |
| Air Receiver | 300L |
| Oxygen Flow Capacity | |
| NI | 8000 |
| NM3 | 8 |
| Filling Capacity Cylinder/H | 1.5 |
| Compressor | 11KW |
| Dryer | KAD-026F |
| Filter | 026PF/AO/AA/AX/AR |
| O2 Receiver | 200L |
| Air Receiver | 400L |
| Oxygen Flow Capacity | |
| NI | 10000 |
| NM3 | 10 |
| Filling Capacity Cylinder/H | 1.8 |
| Compressor | 15KW |
| Dryer | KAD-039F |
| Filter | 039PF/AO/AA/AX/AR |
| O2 Receiver | 200L |
| Air Receiver | 600L |
| Oxygen Flow Capacity | |
| NI | 15000 |
| NM3 | 15 |
| Filling Capacity Cylinder/H | 2.5 |
| Compressor | 18KW |
| Dryer | KAD-039F |
| Filter | 039PF/AO/AA/AX/AR |
| O2 Receiver | 300L |
| Air Receiver | 1000L |
| Oxygen Flow Capacity | |
| NI | 20000 |
| NM3 | 20 |
| Filling Capacity Cylinder/H | 3.5 |
| Compressor | 22KW |
| Dryer | KAD-039F |
| Filter | 039PF/AO/AA/AX/AR |
| O2 Receiver | 400L |
| Air Receiver | 1000L |
| Oxygen Flow Capacity | |
| NI | 25000 |
| NM3 | 25 |
| Filling Capacity Cylinder/H | 4 |
| Compressor | 30KW |
| Dryer | KAD-070F |
| Filter | 070PF/AO/AA/AX/AR |
| O2 Receiver | 600L |
| Air Receiver | 1500L |
| Oxygen Flow Capacity | |
| NI | 30000 |
| NM3 | 30 |
| Filling Capacity Cylinder/H | 5 |
| Compressor | 37KW |
| Dryer | KAD-085F |
| Filter | 085PF/AO/AA/AX/AR |
| O2 Receiver | 600L |
| Air Receiver | 2000L |
| Oxygen Flow Capacity | |
| NI | 40000 |
| NM3 | 40 |
| Filling Capacity Cylinder/H | 7 |
| Compressor | 45KW |
| Dryer | KAD-108F |
| Filter | 108PF/AO/AA/AX/AR |
| O2 Receiver | 600L |
| Air Receiver | 2500L |
| Oxygen Flow Capacity | |
| NI | 50000 |
| NM3 | 50 |
| Filling Capacity Cylinder/H | 9 |
| Compressor | 55KW |
| Dryer | KAD-140F |
| Filter | 140PF/AO/AA/AX/AR |
| O2 Receiver | 1000L |
| Air Receiver | 3000L |
Quality Standards
OXYGEN PURITY
(In full compliance with)
1. US Pharmacopeia
2. European Pharmacopeia
3. Indian Pharmacopeia
ISO 10083:2006
Manufacturing organized in accordance with certified QMS (Quality Management System)

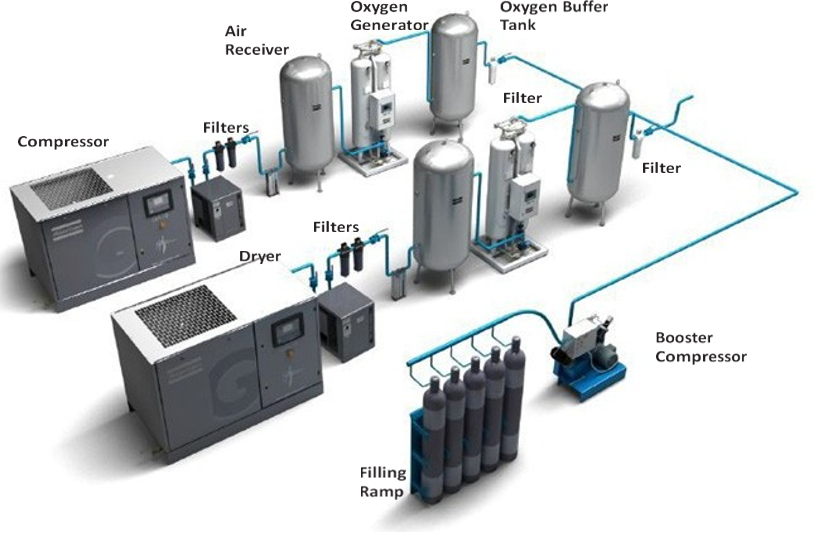

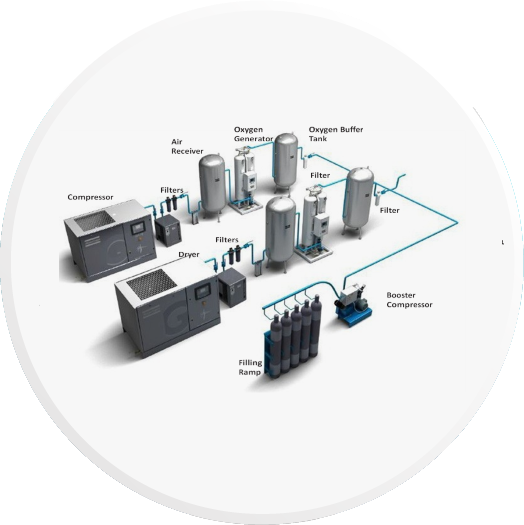

Oxygen Generator Setup
Safety Features of SnylloAir
OXYGEN PURITY
Providing patients with medical grade oxygen is a promising endeavor from SnylloAir. Hence we are providing you with an online oxygen analyzer that displays the oxygen purity all the time
CONTINUOUS FLOW
The continuous supply of medical oxygen us the most important thing & medical oxygen generator is equipped with Flowmeter. The flowmeter displays regular flow to you & when or if required, the switching over panel automatically activates your cylinder back up to ensure continuous oxygen supply<
AUDIO VISUAL ALARMS
Avoiding error-free circumstances & ensuring the well-being of your hospital is our first goal, hence any undesirable sign will activate the alarms equipped to the Medical Oxygen Generator.The alarms generated will lead the operator to reach the site location & call SnylloAir Shield support/nearest dealer for online troubleshooting.
SPECIAL FILTRATION
SnylloAir comes with a series of air and a special bacterial filter to ensure medical oxygen supplied to your hospital is free of all impurities even in situations where intake contains high concentration of pollutants
INTELLIGENT SYSTEM
SnylloAir automatically detects the oxygen requirement of your hospital & goes into idle mode when oxygen is not required. Once the storage tank is full or if the oxygen is not in use, the air compressor stops automatically unless the pressure in the storage tank is below its default limit.
ROI – RETURN ON INVESTMENT
Save Upto 70% On Medical Oxygen Compared To Your Existing Setup
SnylloAir’s Medical Oxygen generator, SnylloAir reduces the cost of Oxygen in your hospital by 1/3rd. Worldwide Hospitals are using Medical Oxygen Generators for their Reliability and Remarkable ROI figures.
The only expenditure is electricity cost for compressing the air and SnylloAir’s onsite medical Oxygen generators utilize a cost effective technology, using minimum air to produce oxygen at a very low cost, as compared to the Cylinder or liquid Oxygen.
